1.ITS Policy

In Japan, ITS (Intelligent Transport Systems) are steadily expanding with the popularization of ETC (Electronic Toll Collection System) and VICS (Vehicle Information and Communication System), and have effectively opened up traffic by providing real-time information; eliminating congestion at toll gates; and mitigating environmental impacts by differential toll discounts. ITS has now entered its second stage and is being promoted in order to solve social issues.
Installation of systems for collecting and providing information, which are the basis of ITS, is promoted and systems are being developed whereby drivers can enjoy diverse services via a single ITS on-board unit.

ETC (Electronic Toll Collection System)

Since it went into service in March 2001, ETC users have been rapidly increasing in number with the quick popularization of ETC on-board units. At the end of March 2011, there were about 34.24 million ETC-equipped vehicles. ETC users now account for 86.2% of all vehicles on expressways in Japan.
The system has effectively eliminated congestion at toll gates.
Previously, 30% of congestion on expressways occurred at toll gates. By allowing drivers to pass through toll gates without having to stop, ETC improves the processing capability of toll gates, eliminating congestion that would otherwise occur there.
ETC communication technology is also used by private opera tors for non-stop passage through parking gates and ferry boarding, among others.

Changes in number of vehicles equipped with ETC on-board unit and percentage of ETC use

Source: Survey by the Organization for Road System Enhancement

Congestion reduction effect of spreading ETC use on Metropolitan Expressway

Percentage of ETC use and congestion show March weekday averages at main-lane toll booths.
Source: Metropolitan Expressway data

ETC for non-stop toll collection has been installed at almost all expressway toll gates in Japan, contributing toward mitigating toll-booth congestion.

Automated parking lot payment

Simplified ferry boarding procedure

VICS (Vehicle Information and Communication System)

VICS transmits road traffic data, such as congestion and traffic restrictions on a real-time basis, to onboard vehicle navigation units and displays data in the form of text, simple graphics and maps.
The service started in Japan in April 1996, earlier than anywhere else in the world. VICS delivers information using three types of media: FM multiplex broadcasting, a radio wave beacon and an infrared beacon.
At the end of March 2011, over 30.13 million vehicles were equipped with VICS compatible onboard units. VICS's best route guidance rectifies traffic flow and improves mileage, which in turn reduces CO2 emissions and environmental impacts.
A target of the Kyoto Protocol Goal Achievement Plan is to reduce CO2 emissions by approximately 2.5 million tons (approximately 30% of all road related policy measures) by FY 2012. through the popularization of VICS.

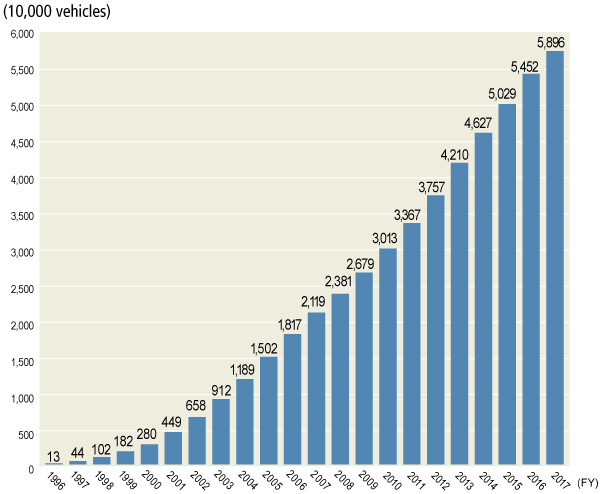

Number of VICS-compatible on-board units in use

Prepared by MLIT based on VICS's data

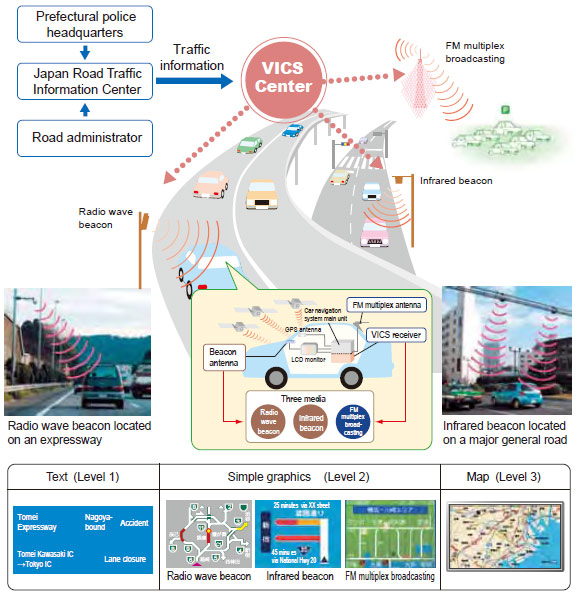

Mechanism of VICS information



2.What is "ETC2.0"

“Smartway” is a next-generation road traffic system incorporating ITS technologies, which provides information to connect people, vehicles, and roads, with the primary aim of ensuring traffic safety, reducing traffic congestion, and protecting the environment. To make this concept a reality, industry, government, and academia have been working together in research, development, and demonstration testing.
In 2011, we started the world’s first Vehicle-to-Infrastructure (V2I) communication service, which enables high-speed high-volume two-way communication between automobiles’ onboard units and ITS spots, was installed along expressways across the country.
Other new services are scheduled to start in the future.

System Architecture

This system uses 5.8 GHz DSRC (Dedicated Short Range Communication), an international standard adopted by ISO (International Organization for Standardization) and ITU (International Telecommunication Union) that enables high-speed, high-volume, two-way communication. DSRC will make various services available by using roadside equipment, “ITS spots”, and “compatible in-vehicle car navigation systems.”

Expanding ITS spot services throughout Japan

As of August 2011, ITS spot services are available in about 1,600 locations positioned on expressways throughout Japan. On inter-city expressways, an ITS spot is installed about every 10 to 15 km, including 90 locations immedi ately in front of junctions, while on urban expressways there is a spot installed about every 4 km.

ETC2.0 Service

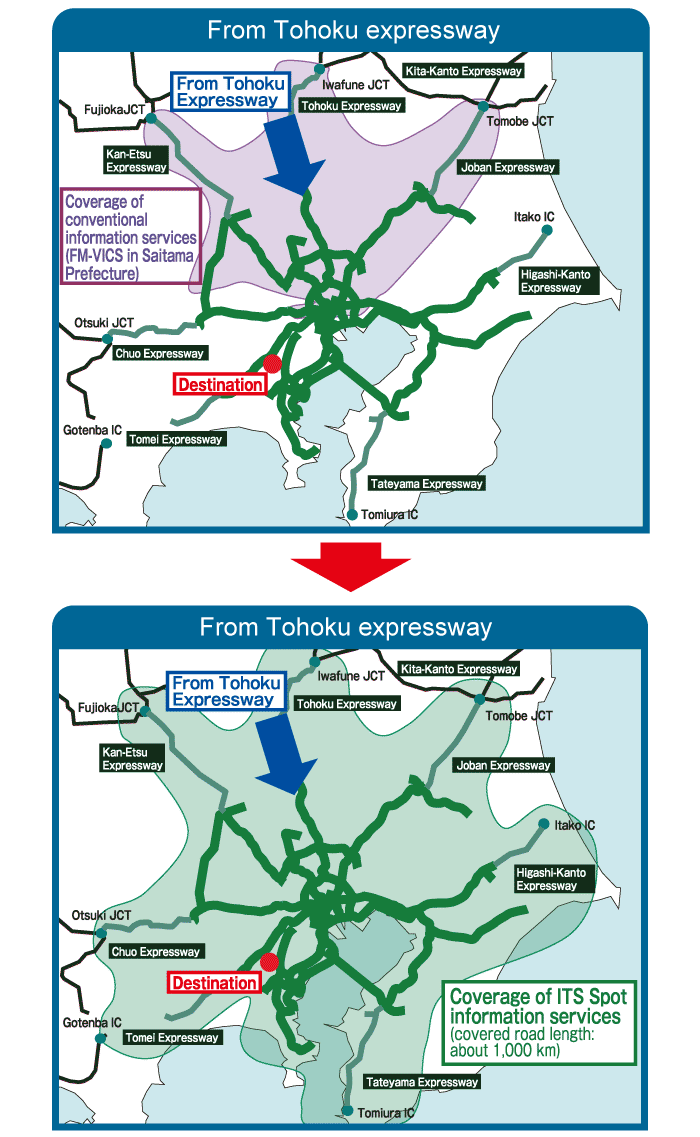

Comparison of the scope of information that is provided by existing FM-VICS and ITS spots (Urban areas)

Since October 2014, we begun a new service called “ETC2.0”, which provides advanced driver assistance on expressways using the communication between ITS spots and onboard units, and adds to the existing auto matic toll payment feature.
ETC2.0 provides the following assistance services:
(1) Traffic avoidance: provides precise information about wide-area traffic congestion on a real-time basis with actual pictures of the road ahead of the driver.
(2) Safe driving: provides safety precautions, such as iden tification of obstacles on roads, a slow-running automo bile at the end of congestion, and pictures of the weather condition ahead of the driver.
(3) Driving during a natural disaster: provides useful infor mation for drivers in the event of road closures.

Enhanced services for ITS spots

In the future, new ETC2.0 services are scheduled to begin. Drivers will soon be given preferential treatment if they take a detour around congested routes. In the future we are also going to support commer cial fleet control through ETC2.0. Furthermore, private services such as automatic payment systems at private parking lots and drive-through booths are under consideration.

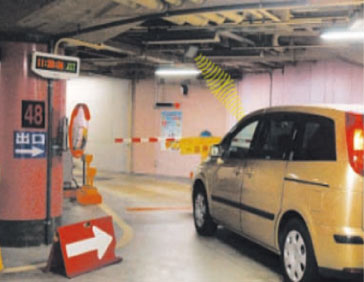

Automatic payment system at a parking lot.


3.Traffic Management through ITS

Efficient Operation of the Road Network

Traffic is controlled 24 hours a day to insure efficient operation and to provide safe, smooth and comfortable traffic flow. Diverse kinds of road information are collected, accumulated, analyzed and provided to road users.

Collecting information

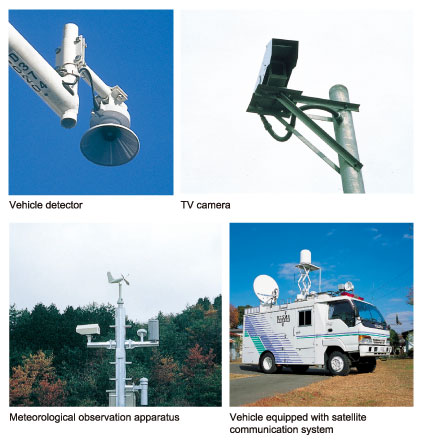

Vehicle detectors, TV cameras, meteorological observation apparatuses and other sensors are installed along roads to quickly collect correct information on traffic congestion, stationary vehicles, and accidents. During disaster events, patrol cars and vehicles equipped with satellite communication systems rush to the site and collect information. Today, efficient methods are used to identify congestion-prone points, such as the use of GPS equipped probe cars, VICS data and other ITS technologies, in cooperation with police departments, instead of the conventional method of conducting field surveys at major intersections.



4.Example of congestion mitigation using ITS

Analyzing the cause of traffic congestion from ITS data and compare it to the traffic management policy (National highway 8, in Joetsu, Niigata)
