Chapter 1. The Hanshin-Awaji Great Earthquake Disaster and Trans port


Section 1. Damages caused by the Hanshin-Awaji Great Earthquake Disaster and its aftermath.


1. Outline of the Southern Hyogo Prefecture Earthquake

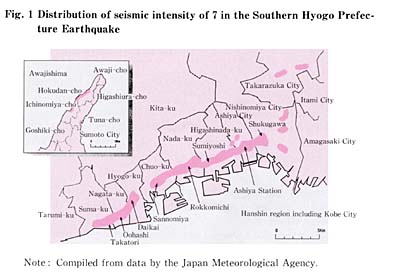

    An earthquake of magnitude 7.2 with the epicenter at the depth of 14 kilometers under the northern part of Awaji Island occurred at 5 :46 a.m on January 17, 1995. The level-VI of the seismic intensity scale of the Japan Meteorological Agency was recorded on this earthquake at the Kobe Marine Observatory. After the occurrence of the earthquake, the Japan Meteorological Agency conducted field surveys on the damage and made a judgment that a very disastrous earthquake of the seismic intensity of 7 had occurred in an area of the northern part of Awaji Island, the belt area ranging from Suma-ward of Kobe City to the southern part of Nishinomiya City, and part of Takarazuka City (Fig. 1). The seismic intensity of 7 was newly established after the Fukui Earthquake in 1948 and it is the first time an earthquake of this seismic intensity was observed.
    As the earthquake occurred just under the city area, the damages were so immense that more than 5,500 people were killed, 41,5OO people were injured and totally collapsed houses were more than 1OO,OOO. The earthquake assumed almost an unprecedented serious aspect of combined damages in a large city consisting of fall railway bridges girders, occurrence of liquefaction on a large scale mainly on artificial islands and disruption of life lines which support city functions. As a disaster caused by an earthquake in this century in Japan, this has been second only to the Great Kanto Earthquake which occurred in September 1923.
    The Japan Meteorological Agency named this earthquake the "Southern Hyogo Prefecture Earthquake, 1995" and the government, in consideration of the extremely large scale of damage as well as future necessity for using a uniform name for promotion of restoration and reconstruction, decided to call this disaster as the "Hanshin-Awaji Great Earthquake Disaster". The gross amount of damage caused by the earthquake was estimated by the National Land Agency at 9,600 billion yen, of which the damages to the transport-related facilities such as railways and port facilities amounted to 1,600 billion yen, accounting for approximately more than 17% of the total damage.

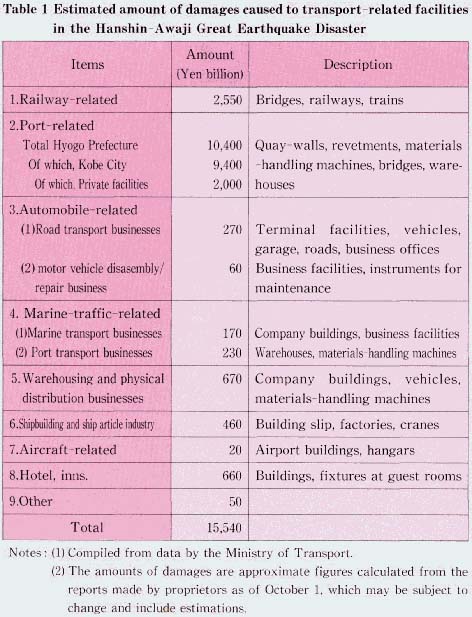

    Of the transport-related damage, the damage to railways is estimated at 255 billion yen and to port facilities at 1,040 billion yen (Table 1).

2. Damages to railways, port facilities, etc.


    (1) Railways

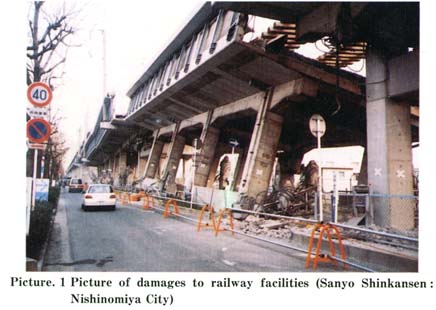

    At lines total 13 railway companies including Sanyo Shinkansen, JR West, Hankyu, Hanshin Electric Railway, etc. the earthquake caused such serious damage as the fall of elevated railway bridges, damages or destruction of tunnels and station buildings, etc. For the serious damage, the sections in which the operation could not be resumed on the day of the earthquake amounted to a total 638 kilometers consisting of 219 kilometers of Shinkansen line between Kyoto and Okayama, 123 kilometers of conventional lines and 296 kilometers of private railway lines. (Picture. 1)
    (2) Ports and coasts
    Damage was caused to facilities at 24 ports in Hyogo, Osaka and Tokushima Prefectures.

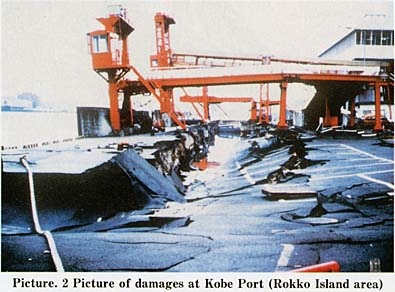

    Especially at Kobe Port, except three earthquake-resistant quay-walls, most of facilities such as container berths at the Port Island and Rokko Island districts were hit so seriously by the earthquake that they could not be used (Picture. 2). Breakwaters subsided by a maximum of 2 meters and their function was extremely lowered.
    A total of approximately 42.5 kilometers of coastal dikes were damaged in Hyogo, Osaka and Tokushima prefectures.
    Elevated dock roads at ports such as Maya Big Bridge and light-weight automated guided transit of the Port Island and Rokko Island lines suffered, like railways and expressways, damages to piers and distortion of bases.
    Furthermore, a subsidence of a maximum of approximately 0.5 meters occurred at the central part of Port Island and the surface of roads at most of Port Island and Rokko Island was covered by mud in several 10 centimeters and the function of these roads was extremely impeded.
    (3) Roads
    Such principal highways as the Chugoku Expressway, Hanshin Expressway Kobe Route, Wangan Route and National Highway No. 2 and 43 became snarled.
    (4) Road transport facilities
    For bus, damage was caused to garages, business offices, terminals, etc. of 32 enterprises in Hyogo and Osaka prefectures as well as to 172 vehicles of 18 enterprises. Regarding taxis, 520 business offices, 160 garages and approximately 760 vehicles suffered damage.
    Truck transport companies in 1,183 suffered damages of fall or destruction of garages, facilities such as business offices and vehicles.
    (5) Airports
    At Osaka International Airport, such damages as cracks on runways and taxiways and collapse of outer walls of passenger terminal building occurred. At Kansai International Airport, cracks were caused to walls of the passenger terminal building, railway station, and the multi-story parking garage but the damage did not interfere with the airline services.
    (6) Harbor Transport facilities, warehouses, shipbuilding-related facilities and others
    Damage at Kobe Port was that to operational facilities such as warehouses, material handling machines, etc. used by harbor transport companies at the port. For warehousing facilities, the collapse of building and the cargoes being crashed occurred mainly at the coastal part of the port and 62 buildings of Class I to 3 warehouses amounting to 261 thousand square meters and 19 refrigeration warehouses amounting to 395 thousand cubic meters were totally or partially destroyed.
    Regarding the shipbuilding-related facilities, many buildings collapsed and factory equipment was damaged, in addition to cranes, falling subsidence of quay-walls, damage to ships under construction or docked, fall from building slips, etc.
    At hotels in Kobe city, there were interruptions of life line, damage to facilities for services, which made many hotels unable to continue service.

3. Effects exerted on transport


    (1) Effects on human movement
    A. Railways
    (i) Passengers carried immediately after the earthquake
    The Shinkansen line between Kyoto and Okayama was interrupted immediately after the, earthquake. The section between Himeji and Okayama (89 km) was recovered on January 18 and the section between Kyoto and Shin-Osaka (39 km) on January 20. However, the section between Shin-Osaka and Himeji (92 km) was suspended until April 7 and approximately 110 thousand passengers per day on the up and down lines were affected. This is approximately 71% of the average number of passengers per day, which was approximately 160 thousand in fiscal 1994, carried on the whole line of the Sanyo Shinkansen line (between Shin-Osaka and Hakata, 623 km).

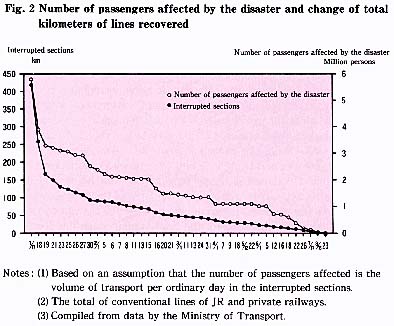

    On conventional lines of JR and lines of private railway companies, the sections which could not be recovered on the day of the occurrence of the earthquake mounted to approximately 419 km including the section between Amagasaki and Himeji (80 km) on the JR Tokaido and Sanyo line, whole Kobe line (32 km) of Hankyu and whole main line (32 km) of Hanshin Electric Train and approximately 5.8 million people were affected. As of the end of January, effects remained on approximately 2.5 million people with a total of approximately 93 km of interrupted lines on the JR Tokaido line (between Ashiya and Kobe, 14 km), which is an artery of railway traffic between Kobe and Osaka, Kobe line of Hankyu (between Nishinomiya Kitaguchi and Sannomiya, 17 km) and Hanshin Electric Railway (between Aoki and Motomachi, 10 km) (Fig. 2).
    In terms of the total railways, the passengers who were affected accounted for approximately 17% of the total passengers in the Kinki District and about 4% of the total passengers in Japan.
    (b) Recovery of passengers carried in accordance with rehabilitation

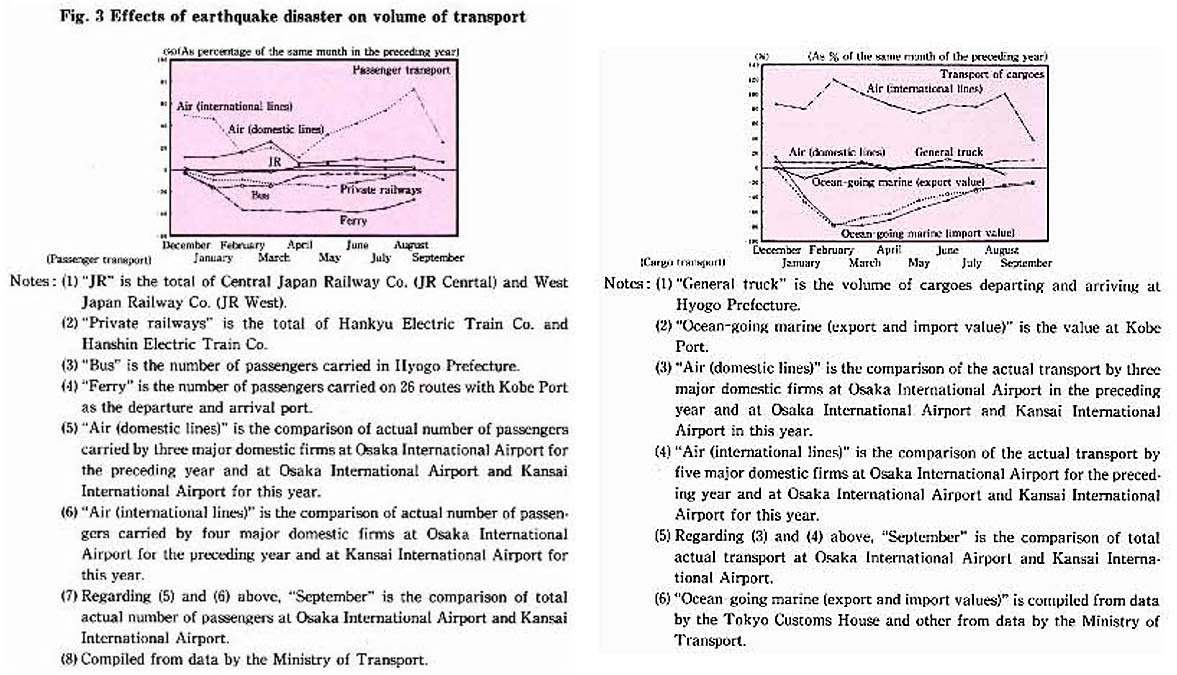

    The number of passengers carried by JR Central and JR West showed a decrease in the period from January to March 1995 compared with the same period of the preceding year due to the interruption on the Tokaido line and Sanyo Shinkansen line. However, in and after April when the restoration of the all sections has been realized, the number of passengers carried increased compared with the preceding year and no effect of the earthquake can be seen any more (Fig. 3).
    The number of passengers carried by private railway companies such as Hankyu and Hanshin Electric Railway decreased greatly due to the interruption of lines. Even after June when all lines of these two companies have been resumed, the number of passengers has not fully recovered due to the decrease of population living along these two companies' lines and the shift of passengers to JR lines. In September, the total passengers carried on the lines of these two companies accounted for only 91.3% of the same month of the preceding year and the effect of the earthquake has been prolonged (Fig. 3).
    (ii) Air
    The number of domestic passengers nation wide increased by as high as 20.1% in March compared to the same month of the preceding year, as the service of temporary flights continued until the middle of April mainly on Tokyo-Hiroshima and Osaka-Fukuoka routes which fly over Osaka and Kobe. The number of passengers departing and arriving at Osaka International Airport and Kansai International Airport showed a great increase of 25.7% in March compared to the same month of the preceding year, which is partly attributable to a large number of increase of flights realized by the opening of Kansai International Airport on June 9, 1994. However, since the resumption of full operation on the Sanyo Shinkansen line(April 8), the number of passengers by air has normalized (Fig. 3).
    The increase in international passengers departing and arriving at Osaka International Airport and Kansai International Airport showed a great slow down due to the effect of so-called "refraining from going out" in the period from February to April compared with the increase in January of 46.0% compared to the same month of the preceding year. However, the increase has recovered smoothly after May and recorded an increase of 72.8% in August compared with the same month of the previous year (Fig. 3). On a national basis the effect of this "refraining from going out" appeared definitely and the number of passengers in February decreased to 97.4% of the same month of the previous year, which was the sole decrease since September 1993. The number of passengers showed a low increase rate in March and April as well. However, it then started recovering gradually and in July showed an increase of 15.8% compared to the same month of the preceding year, with no more effect of the damage by the earthquake left.
    (iii) Motor vehicle traffic
    Bus services stopped on almost all lines in Kobe immediately after the earthquake. The volume of passenger traffic by bus in Kobe in January decreased to 83.0% of the same month of the preceding year due to effects of damages and destruction of roads by the earthquake. It has been slowly recovering but still remained at 95.4% in August compared to the same month of the preceding year (Fig. 3).
    The number of passengers carried by taxi in Hyogo Prefecture recorded 61.5% in February compared to the same month of the preceding year and still remained at 86.6% in August compared to the same month of the previous year. The effect of the earthquake has been prolonged for taxi.
    (iv) Marine traffic

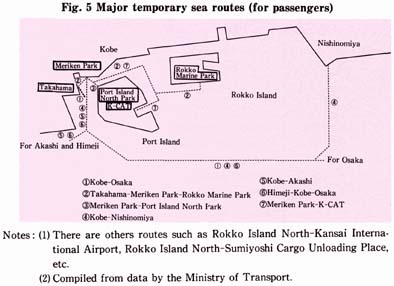

    There are many services of ferry, passenger boats and high-speed boats from Kobe Port to Awaji Island, Shikoku and Kyushu and almost all of these services were forced to suspend temporarily. However, emergency restoration of port facilities made it possible to resume some services at an early stage. Furthermore, services were maintained by temporary cancellation of calls at Kobe Port and temporary change of the home port or the terminal port from Kobe Port to Osaka Port or other ports.
    While there were some exceptions of increase of passengers carried by shift of passengers from railways, the number of passengers by ferries decreased mainly on Kobe-related lines such as between Awaji Island and Kobe, Tokushima and Kobe, etc. The number of passengers carried on 26 lines of ferries which have made Osaka and Kobe ports home port or terminal port was 84.4% in January compared to the same month of the preceding year and it decreased greatly to less than 65% in the period from February to July compared to the same period of the preceding year. It remained at 73.0% in August compared to the same month of the preceding year and the effect of the earthquake has been prolonged (Fig. 3).
    (2) Effects on physical distribution
    (i) Railways and trucks
    In terms of the total volume of freight traffic going through Hyogo Prefecture, the volume by railways is only slightly over lO% of the volume of freight traffic by trucks. The situation of freight traffic after the earthquake was as follows.
    Before the earthquake, the volume of container traffic by JR Freight on the section between Ashiya and Kobe (14 km) on the Tokaido Line, which was interrupted as of the end of January, was a total of 4,800 containers per day for the up and down lines when converted into 12 feet containers. After the earthquake, the actual volume of traffic decreased to approximately 8% of the pre-earthquake volume in January and approximately 37% in March.
    Regarding trucking, it is estimated that cargoes exceeding 550 thousand tons per day suffered such effects as great delay immediately after the earthquake due to destruction of roads on express ways and national highways, and it is estimated that, on a national basis, a maximum of approximately more than 3.5% of the volume of cargo transported by trucking was affected by the earthquake.
    The volume of cargoes by general trucks starting or terminating in Hyogo Prefecture in January 1995 was 85.8% compared to the same month of the preceding year but the volume has increased in the period from May to July compared to the same period of the preceding year (Fig. 5).
    (ii) Marine traffic and ports

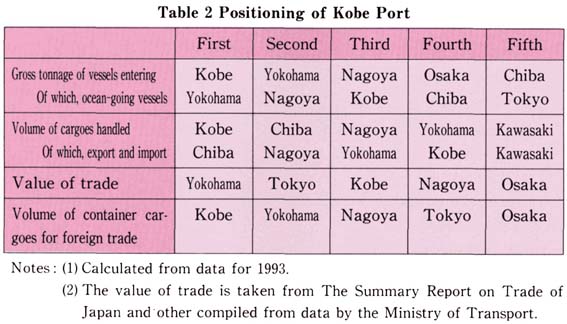

    The value of international trade at Kobe Port was approximately 7,130 billion yen (approximately 11% of the Japan's total trade) in 1993. Especially, the cargo volume of foreign trade liners was 43,140 thousand tons, of which container cargoes accounted for 39,810 thousand tons or 2.5 million TEU (approximately 30% of the Japan's total container cargoes) and Kobe Port is the largest in terms of these volumes of cargoes (Table 2).
    As damage or destruction of quay-walls and materials handling machines by the earthquake caused an overall interruption of handling of container cargo at Kobe Port, oceangoing vessel companies unloaded containers destined for Kobe Port at other ports as an emergency measure. For this, in neighboring areas of Osaka Port, as an example, traffic jams at the container terminal and surrounding roads were caused and parking space became insufficient.
    The value of exports from Kobe Port in February was reduced to 20.5% of that of the same month of the previous year and the value of imports to less than 30% in the period from February to April compared to the same period of the preceding year. While, in accordance with the rehabilitation of the port, the value of exports has recovered rapidly to 80.5% and the value of imports to 78.0% in September compared to the same month of the preceding year, the effects of the earthquake still remain (Fig. 3).
    By items, approximately 70 to 80% of the textile industry products, threads and semi-finished spun products exported from Japan and 50 to 60% of imports of these products into Japan are made through Kobe Port. It is assumed that the lowered functions of Kobe Port caused by the earthquake would have substantial effects on the distribution of textile products.

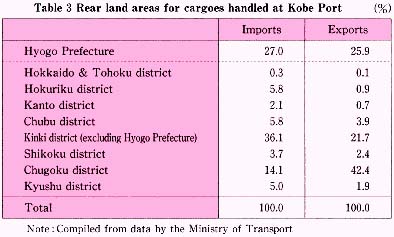

    As Kobe Port serves a wide area, it is assumed that effects of the earthquake have been exerted on a wide range of areas, mainly in western Japan (Table 3).
    Furthermore, the paralyzed functions of Kobe Port affected not only Japan but also other Asian countries. As an example, some of enterprises in those countries had to stop temporarily their production lines or change suppliers of parts.
    (iii) Air
    Due to the shift from land transport caused by the interruption of railways and collapse of expressways as well as the increased demand for transport of emergency goods, the total Japanese domestic cargo transport increased by 25.00/0' in January compared to the same month of the preceding year. The domestic cargoes starting and arriving at Osaka International Airport and Kansai International Airport increased by 8.2% in March compared to the same month of the preceding year. However, with the recovery of land transport, it has returned to the usual level of transport after April (Fig. 3).
    In addition to a substantial increase of international cargoes owing to the establishment of new routes by the opening of Kansai International Airport, shifts of transport of automotive parts and others from marine transport to air contributed to increasing the volume of international air cargoes departing and arriving at Osaka International Airport and Kansai International Airport by more than 100% in February and March compared to the same months in the preceding year. The increase in the period from April to July was by 70 to 80% compared to the same period of the preceding month (Fig. 3).
    (iv) Warehousing
    In accordance with the lowering of port functions at Kobe Port, the in-warehouse volume in February in Kobe City was only 19.5% of that of the same month of the preceding year for the ordinary warehouses and 14.8% for the refrigeration warehouses. In August, the in-warehouse volume and the balance of storage as of the end of month recovered to respectively 63.9% and 78.6% for the ordinary warehouses and 88.0% and 91.0% for the refrigeration warehouses.
    (3) Effects on tourism

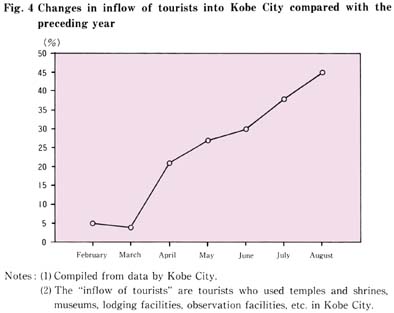

    According to a survey by Kobe City, the number of tourists per month visited Kobe was only 5% in February compared to the same month of the preceding year and 4% in March. The tourist industry was almost in a state of complete collapse. While it has been in a process of gradual recovery since April, the number of tourists in August still remained at 45% of the number in the same month of the preceding year and effects of the earthquake drag on (Fig. 4).
    The value of domestic tourism handled by leading travel companies all over Japan decreased in February to 92.4% of the same month of the preceding year and continuously recorded the decrease in the period from January to May compared to the same period of the same year compared to the preceding year because of the decrease of tourists visiting peripheries areas of the stricken area as well as the "refraining from going out" which was observed on a nation-wide scale. In June, however, the value recovered to show a 2.0% increase compared to the same month of the preceding year. The value of overseas tourism was also affected by the earthquake as it dropped in February to 95.0% of the value of the same month of the preceding year. The value, however, started showing an increase since April compared to the same month of the preceding year and the effect of "refraining from going out" has disappeared.
    Hotels in Osaka City which have hardly been hit directly by the earthquake increased the rate of operation to 90.9% in February (increase of 22.3 points compared to that of February of the preceding year) but the rate was lowered to the normal level in April (an increase of 2.3 points compared to the same month of the previous year).
