Section 2. Measures taken after the Occurrence of the Earthquake


    1. Operation of relief activities and emergency transport


    Based on the Cabinet determination, the Japanese Government established on January 17 the "Southern Hyogo Prefecture Earthquake Headquaters for Major Earthquake Disaster Countermeasures" with the Director General of the National Land Agency as the head. In order to implement urgently integrated and overall measures by the government, the "Emergency Task force for the Southern Hyogo Prefecture Earthquake" was established on January 19 with the Prime Minister as the head and all other cabinet members as its members.
    As part of these actions by the government as a whole, the Ministry of Transport established the "earthquake disaster counter measure office" at main office of the Ministry, Maritime Safety Agency and Meteorological Agency and their local offices concerned to engage in relief activities for sufferers from the earthquake and establishment of the system to deliver emergency relief goods to stricken areas and organization of transport means by detour railway transport and substitute bus.
    Enterprises in the transport industry and their industry organizations carried out relief activities for sufferers and emergency delivery of relief goods and goods for rehabilitation from the disaster.
    (1) Grasping the situation of damages Immediately after the earthquake, the Maritime Safety Agency conducted the survey on damages at Kobe Port and other using the patrol vessels/craft and aircraft operating in Osaka and Kobe areas.
    On January 17, main office of the Ministry of Transport dispatched officers in charge from various divisions concerned in the ministry for field surveys to grasp in details the situation of damaged areas. At the same time, necessary instructions were given to initiate rehabilitation works urgently for various facilities of railways, ports, etc. which were required for emergency transport.
    (2) Measures to prevent the secondary disaster
    The Maritime Safety Agency made cooperation for measures taken to prevent disaster by leak of gas from cracked LPG tanks as well as activities to extinguish fires at burning warehousing facilities. The agency conducted investigations on the situation of the topographic change of the faults at the hypocentral region at the bottom of the sea. In addition, as it was of concern that many empty containers discharged into sea and drifted would cause danger to marine traffic, the agency designated part of the port as the area of prohibition of sailing and anchoring. The agency also engaged instantly in emergency rehabilitation of light house facilities at Kobe Port, Awaji Island, etc. to secure the safety of marine traffic.
    The Meteorological Agency dispatched field survey teams to con-duct detailed field surveys and installed seismic intensity meters to observe aftershock at five places including Tarumi-ku of Kobe City.
    As such a major earthquake as this generates cracks to the ground which are apt to cause landslide with rain, detailed meteorological information on rain, wind and temperature was reported and announced on appropriate occasions.
    At the end of March, in order to strengthen the observation and monitoring the rainfall, the agency installed wired robotized pluviometers at three spots in Tarumi-ku of Kobe City and other. In order to strengthen the system of observation and monitoring of after-shock at peripheral areas, seismic intensity meters were located newly on 20 spots.
    (3) Relief activities

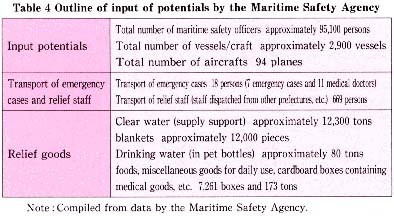

    The Maritime Safety Agency urgently dispatched patrol vessels/craft and aircraft to Osaka Bay from the rest of Japan. It started transport of relief goods on January 17 and engaged in transport of relief goods from Kansai International Airport to Kobe Port by patrol vessels/craft and carrying of emergency cases by helicopters (Picture 3, Table 4).
    Furthermore, state-owned land under the jurisdiction of the Civil Aviation Bureau and land owned by the Japanese National Railways Settlement Corporation was offered for use as bases for rehabilitation such as sites for housing for victims, places for disposing rubble and bases for delivery of goods. Apartment houses owned by Organizations for Environmental Improvement Around Airports were offered as dwelling for victims.
    On the other hand, in the private sector, organizations of hotels and ryokan (Japanese-style inns) mainly located in the Kinki District presented to the local governments hotels and ryokans which victims could use at discount rates and were granted free bathing tickets for common use in local areas. Organizations of bus companies provided services for free use of buses between places of refuge and public baths and baths established by the Self-defence Force.
    Marine transport businesses whose headquarters are located in the Kinki District offered free of charge containers for temporary dwelling and refrigeration containers for storing relief goods. At Kobe and Tsuna ports, etc. passenger boats were provided for use as baths and temporary lodgings.
    (4) Establishment of emergency transport system
    At the stricken area, the necessity for water, foods and medicines became mounted and it became necessary to secure these goods in great quantity and to transport to the stricken area.
    In order to meet these necessities, the Ministry of Transport requested cooperation for implementation of smooth transport operations on land, sea and air from Japan Trucking Association, Japan Federation of Coastal Shipping Associations. All Japan Air Transport and Service Association. In conformity with the request, the following support activities were carried out.
    ・ Trucking companies all over Japan engaged in transport of emergency assistance goods such as necessities for life. Trucking companies in the local areas concerned cooperated to the utmost for transport in their areas, and trucks and personnel were dispatched from trucking associations in the neighborhood.
    ・ Air transport businesses transported assistance goods such as foods, blood for transfusion, water purifiers, etc. From January 20, emergency transport of foods and other goods were made by civil helicopters.
    ・ Some Japanese and foreign companies in the air transport business offered cargo aircraft and helicopters to the Japanese government to use for the emergency transport.
    ・ JR Freight and transport firms using railways transported foods and others after January 20.
    ・ Private marine transport companies carried medical goods, foods, drinking water, etc. with their ferries and other.
    In addition to these, emergency transport was carried out in collaboration of the national government, local governments and transport-related businesses. As an example, a route was established and through this route the emergency assistance goods which were requested by a public organization were carried free of charge by aviation companies to Kansai International Airport, then to Kobe Port by patrol vessels/craft, etc. of the Maritime Safety Agency and finally to the disaster counter measure office by trucks arranged by the prefecture.
    The Ministry of Transport adopted flexible procedures for permission for helicopters to land and take off at places other than airports and established a shuttle transport system between seven spots in Osaka Prefecture and Himeji City, etc. and 17 spots in the stricken area.
    (5) Maintenance of order of transport
    The Ministry of Transport engaged in monitoring to prevent taxis illegally claiming unduly high fares and made such disposal as suspension of use of vehicles to those engaged in illegal business.
    Furthermore, the Ministry of Transport requested the related business organizations not to adopt the follow-up raise of the freight of domestic marine transport.

2. Securing of substitute transport


    (1) Background for the substitute transport
    It was of concern that immense damage was caused to transportrelated facilities such as railways, ports, expressways, etc. by the earthquake and great effects would be exerted on people's lives and industrial activities not only in the stricken area but also nation-wide.
    Under the situation, efforts were made to secure emergency transport routes by means of making bus routes as substitute for railways, establishing temporary routes for passenger boats, providing temporary flight services, etc. It was endeavored to hasten the rehabilitation of collapsed railway and port facilities, etc.
    (2) Substitute transport of passengers
    (i) Service of bus as a substitute for railways

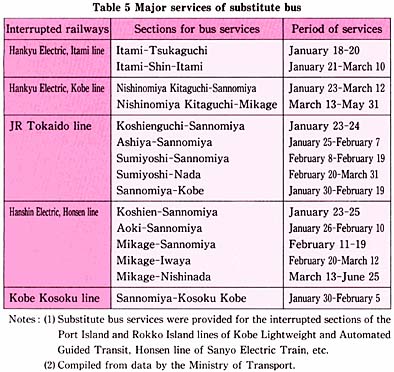

    In the sections where the railway was interrupted, the service of bus as a substitute for railway started on the following day of the earth-quake. Starting with the service of a substitute bus between Itami and Tsukaguchi on January 18, the bus service was carried out in 13 sections (Table 5). Especially between Osaka and Kobe, the exclusive bus lane was established on National Highway N0.43 in collaboration with the police and road management body and non-stop shuttle bus services were provided between the starting and destination stops. The services of substitute buses in these sections exceeded 4,000 buses per day at the peak and carried approximately 230 thousand persons. In the same sections, approximately 940 thousand passengers were carried by rail-ways before the earthquake.
    In order to secure the route to substitute the section between Shin-Osaka and Himeji stations on the Sanyo Shinkansen line, a bus route between Himeji Station and Sanda via the Chugoku Expressway and an average of 33 buses were operated per day to carry 1,370 persons. To include the time for the train between Sanda and Shin-Osaka, it took 2 hours and 10 minutes.
    The substitute transport by bus continued by changing routes depending on the situation of rehabilitation of roads in each section. The transport was reduced gradually in accordance with the development of rehabilitation of railways and with the overall rehabilitation of railways on August 22, this service terminated.
    (ii) Substitute transport by sea routes
    As one of substitute transport means for railway passengers, 12 routes were opened temporarily between Kobe and Osaka, etc. in addition to utilization of existing route (Fig. 5).
    At the maximum, 78 round cruises were made on all routes per day and approximately 24 thousand passengers were carried per day. Passengers carried totalled approximately 700 thousand until the end of May.
    The required time was approximately 30 minutes for the route of Kobe (Takahama) and Osaka, etc. and 40 minutes for the route of Kobe (Meriken Park) and Nishinomiya.
    (iii) Roundabout routes of JR railways

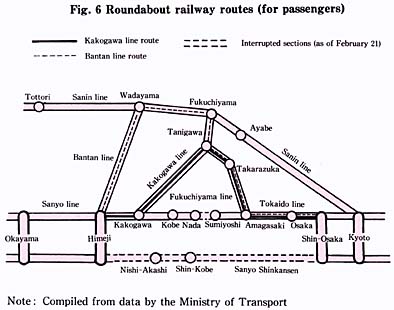

    As the sections between Shin-Osaka and Himeji of JR Sanyo Shinkansen, Amagasaki and Kobe of the Tokaido Line, and Kobe and Himeji of Sanyo Honsen line were totally interrupted, roundabout routes for railways were opened (Fig. 6) after January 23, in addition to the substitute bus transport, and a transport means by railway services was secured.
    For these services, the Kakogawa line route (utilizing the Kakogawa and Fukuchiyama lines), Bantan line route (Bantan, Sanin, and Fukuchiyama lines) were used. While, ordinarily, it takes 35 minutes on the Sanyo Shinkansen line for the section between Himeji and Shin-Osaka (92 km) and I hour and 40 minutes on the conventional line, it took 2 hours and 45 minutes for the distance of 149 km on the Kakogawa line route.
    For the Bantan line route of 214 km, the required time was approximately 3 hours and 20 minutes.
    As all sections of the Tokaido line were resumed on April I and the Sanyo Shinkansen line on April 8, the roundabout routes ended their role.
    (iv) Substitute by aircraft
    As the Sanyo Shinkansen line was suspended, as its substitute, a total of 3,672 temporary shuttle flights were serviced from January 17 to April 14 between each of Hiroshima, Okayama and Fukuoka and each of Tokyo. Osaka and other. As a total of 1.05 million passengers were carried, the number of passengers departing and arriving at each airport increased sharply (Table 6).
    At Osaka International Airport, after consultation with the local community, the time for flight schedule for temporary flights was prolonged from 09:OO p.m. to 10 :OO p.m. and between February 7 and April 14, 2 to 4 temporary flights per day were serviced at this time belt.

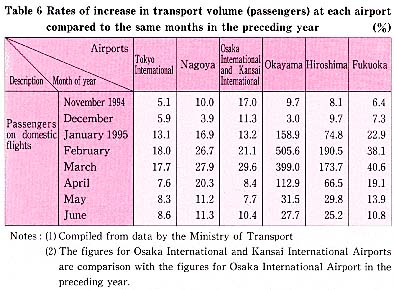

    At the early stage of introduction of this temporary flight service, many flights were almost fully occupied but since the resumption of the Sanyo Shinkansen line on April 8, the load factor dropped sharply and the temporary flight services finished on April 14.
    (3) Substitute transport of cargoes
    (i) Substitute transport by domestic cargo vessels
    As a substitute for trucks and trains which could not pass through Kobe due to the interruption of roads and railways, domestic cargo vessels arranged urgently were used on marine transport routes to transport steel materials, automotive parts, etc.
    (ii) Substitute transport by aircraft
    Due to the interruption of roads and railways, cargo was carried by aircraft between east and west Japan. Especially, demands increased in cities further west of Osaka with Haneda Airport as departing and arriving port including such routes as Haneda-Hiroshima, Haneda-Okayama, Haneda-Fukuoka, etc.
    As a result of lowered functions of Kobe Port, in some cases, the transport of light-weighted and high value industrial parts destined for plants in Southeast Asia, such as semiconductors, liquid crystal displays, parts for precision machines, etc. was shifted from ocean-going shipping to international aviation.
    (iii) Substitute transport for railway cargo

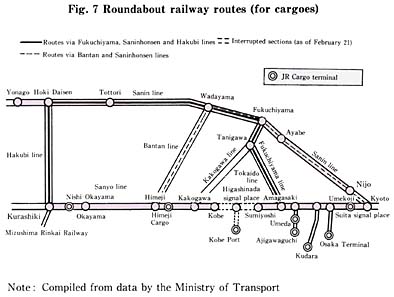

    Due to the interruption of the Tokaido line, substitute transport was conducted for containers by trucks and domestic cargo vessels. Furthermore, the roundabout route was established via the Fuku-chiyama, Sanin and Hakubi lines on February 11. The transport capacity on the roundabout route in February was only 2% of the normal capacity on a daily average but it increased to 26% of the normal capacity as a result of substitute transport otherwise established.
    Regarding special commodity in the interrupted sections, the abovementioned roundabout routes were used from March 4 and the roundabout route via the Bantan and Sanin line was opened on March 14 (Fig. 7).
    (4) Substitute of functions of Kobe Port by Osaka and other ports

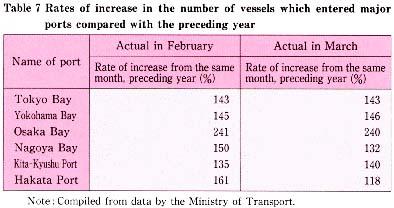

    Damage to Kobe Port forced the ports of export and import to change for a great quantity of cargoes and it became necessary to use not only Osaka Port, Sakai Senhoku Port, etc. in the vicinity of the stricken area but also other major ports in Japan as substitute ports for Kobe.
    Under such circumstances, the Ministry of Transport, with an attempt to minimize the effects on the Japanese economic activities and people's living, requested management bodies of other major ports in Japan to cooperate to substitute the role which had been played by Kobe Port.
    At major ports of Japan, in order to secure smooth physical distribution, a council consisting of members from administration organizations such as the port management body, customs house, etc. and business representatives such as the association of harbor transport companies association of warehouses, and port workers trade unions, etc. was organized. The council made arrangements for securing container yards and chassis pools for temporary use, effective transport of cargo to be shifted from Kobe Port. At the same time, arrangements were made to enable workers at Kobe Port to temporarily engage in stevedoring works at other ports.
    On the other hand, shipping companies which had used Kobe Port unloaded cargoes from their vessels, as an emergency measure, at the nearest Osaka Port, etc. In addition to utilization of the provisional use quay-walls which are restored with slight repairing, there were cases in which assignment of vessels was made to other ports by routes. It is assumed that those companies will return to the state before the earthquake examining the situation of rehabilitation at Kobe Port.

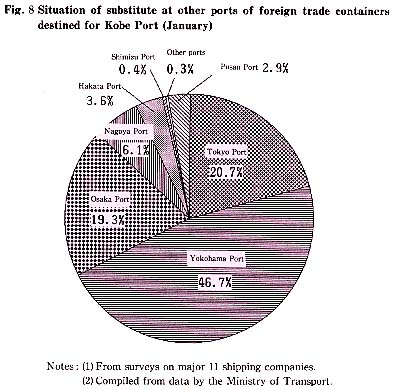

    Of the cargo scheduled to be unloaded at Kobe Port in the period from January 17 to 31, approximately 50% was unloaded at Yokohama Port and approximately 20% respectively at Tokyo Port and Osaka Port (Fig. 8). The number of vessels entering each port in February and March recorded a sharp increase compared to the same months of the preceding year, eg, 2.4 times for Osaka Port (Table 7).

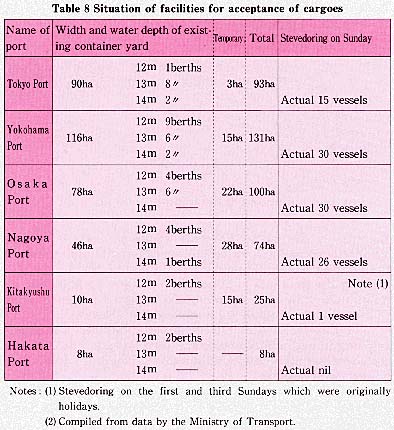

    At major ports such as Osaka and Yokohama ports, stevedoring works were carried out on Sunday and at night in order to accept cargoes which had been shifted from Kobe Port (Table 8).
    For domestic container cargoes, mainly Himeji Port and Higashi Harima Port were utilized as substitute ports for Kobe. As cranes for containers have not been installed at these two ports, truck cranes were utilized for stevedoring.
